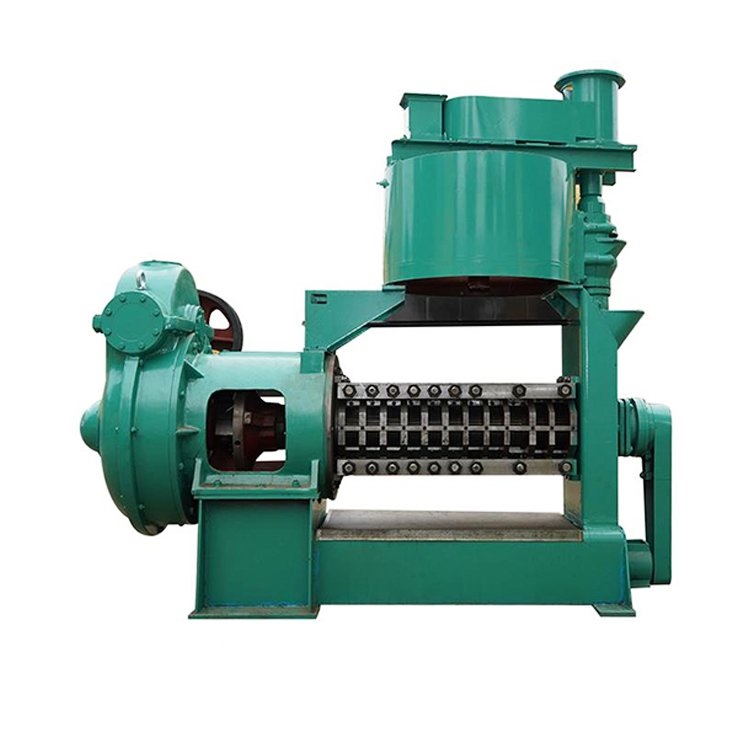

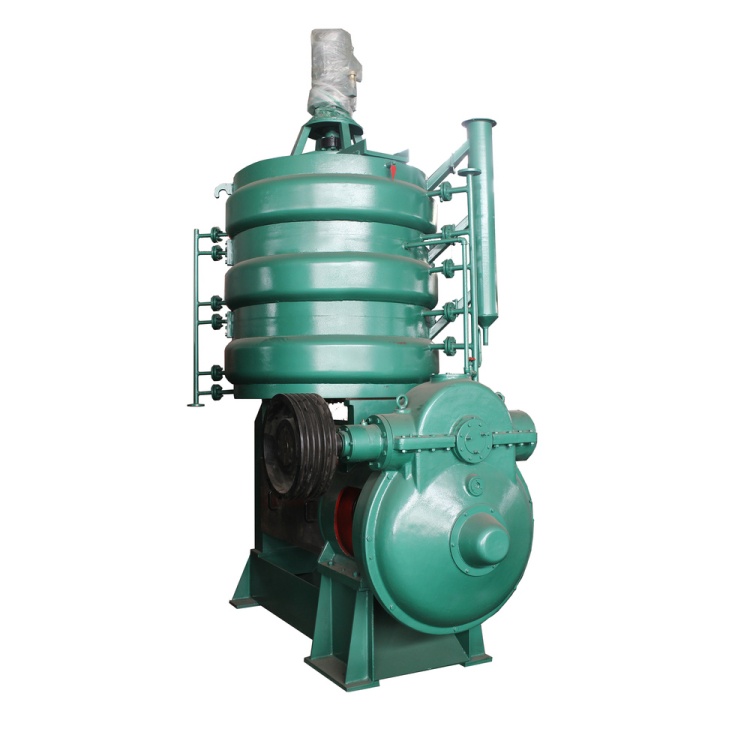

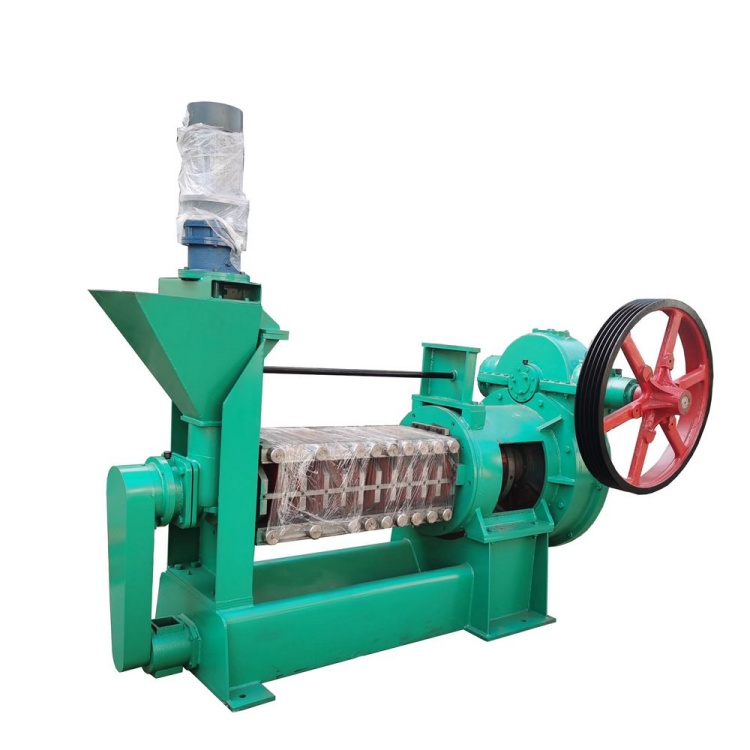

YZY200-3 Single Screw Oil Press

YZY200-3 Single Screw Oil Press

Main technical parameters:

1. Processing capacity: 8-10 tons/24 hours

2. Extraction temperature: 80-105 ℃

3. Extraction moisture: 3% -7%

4. Residual oil in cake: 6% -7%

5. Cake thickness: 10-25mm

6. Feeding form: auxiliary steamer φ one thousand and two hundred × 3 layers

7. Spindle speed: 8 rpm, steamer shaft speed: 38 rpm, feed shaft speed: 70 rpm

8. Single machine total power: Main motor 18.5KW

9. External dimensions: 2.85 meters long × Width 1.85 meters × Height of 3.27 meters, net weight of equipment: 5.5 tons

10. Pressure gauge Y-100, grade 2.5, 1.0Mpa

11. Fill GB443-64.HJ30 mechanical oil into the gearbox to the centerline of the oil mark

12. High quality steel 20CrMnTi heat treatment process is used for screw and bar pressing, and the spindle is 40Cr

13. Gearbox reducer pulley φ 960. Motor wheel φ two hundred and ten

14. Random accessories: host triangle belt, length C4953, 5 pieces, C2337 triangle belts for steamer mixing, 4 pieces, 2 motor guide rails (including 4 sets of motor fixing bolts and 4 sets of several fixing bolts), 3 large and small wrenches, and motor wheels.

15. 1 year warranty for the entire machine
