Material: Carbon steel/wear-resistant material Color: White
Processing capacity：25-30T/D
It is suitable for cottonseed, sunflower seed, rapeseed, castor, peanut, corn germ and other oilseeds with more oil.
It is suitable for cottonseed, sunflower seed, rapeseed, castor, peanut, corn germ and other oilseeds with more oil.
Its characteristics are:
1. Large processing capacity. The workshop area, power consumption, operation, management and maintenance work have been reduced accordingly.
2. The structure of the pressed cake is loose and not powdery, which is conducive to solvent penetration.
3. The oil content and water content of the pressed cake are suitable for solvent extraction.
4. The quality of the extracted oil is better than that of one press or one extraction.

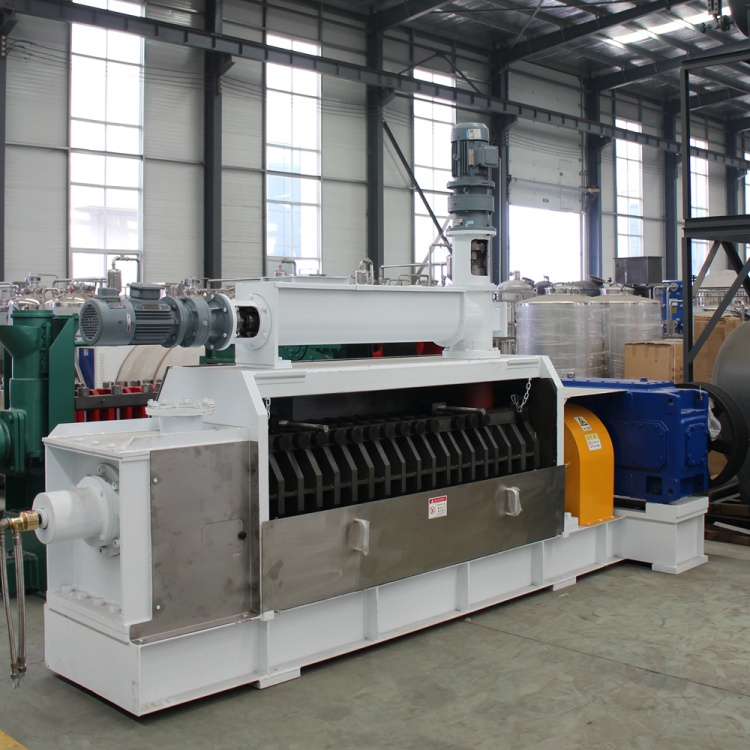

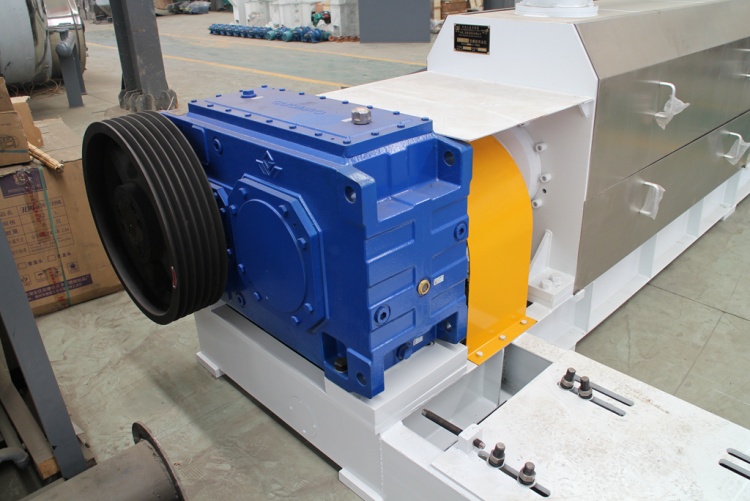

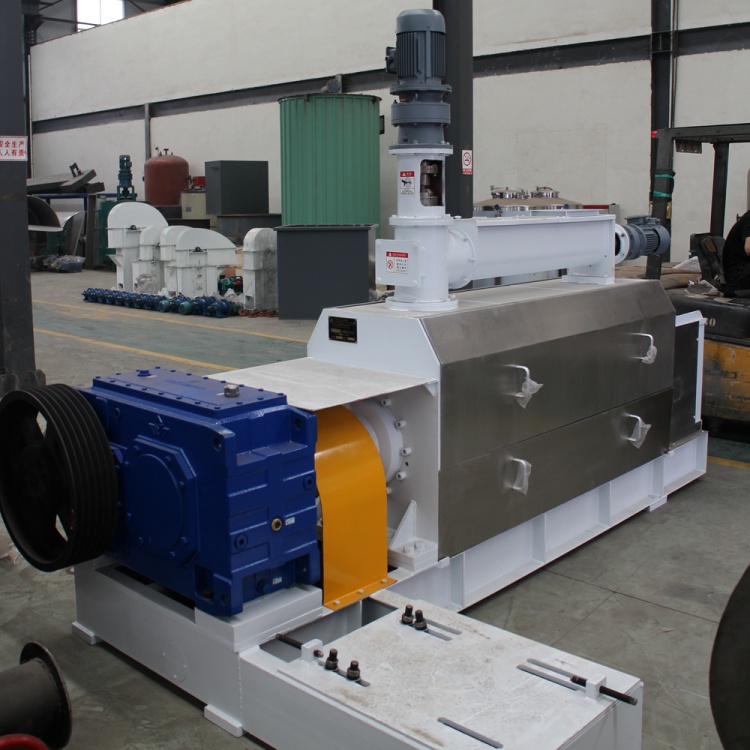

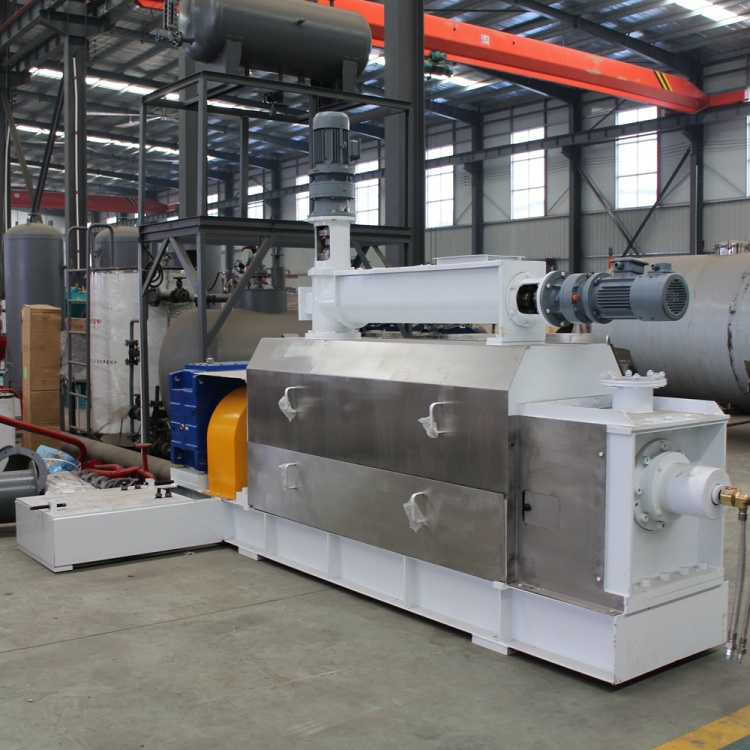

ZX/ZY34 screw oil press
型号 | model | ZY34 | ZX34 |
处理量 | Processing capacity | 280-300T/D | 90-100T/D |
干饼残油率 | Residual oil rate of dry cake | 16-20% | 8-10% |
配用动力 | power | 200+7.5+3.0+1.1 | 90+11+5.5 |
外形尺寸 | size | 6300x1495x3300 | 6300x1495x3352 |
净重 | weight | 16000kg | 16500kg |
ZX/ZY32 screw oil press
型号 | model | ZY32 | ZX32 |
处理量 | Processing capacity | 220-260T/D | 90-100T/D |
干饼残油率 | Residual oil rate of dry cake | 16-20% | 8-10% |
配用动力 | power | 110+11+5.5 | 90+11+5.5 |
外形尺寸 | size | 4100x2270x3850 | 4100x2270x3850 |
净重 | weight | 11000kg | 11000kg |
ZX/ZY 28 screw oil press
型号 | model | ZX28 | ZY28 |
处理量 | Processing capacity | 40-60T/D | 120-150T/D |
干饼残油率 | Residual oil rate of dry cake | 7-9% | 16-20% |
配用动力 | power | 55+11+4.0 | 75+11+5.5 |
外形尺寸 | size | 3740x1920x3843 | 3740x1920x3843 |
净重 | weight | 9160kg | 9160kg |
ZX/ZY 26 screw oil press
型号 | model | ZX26 |
处理量 | Processing capacity | 40-50T/D |
干饼残油率 | Residual oil rate of dry cake | 6-8% |
配用动力 | power | 75+11+5.5+1.1 |
外形尺寸 | size | 4632x2250x4025 |
净重 | weight | 13000kg |
ZX/ZY 21 screw oil press
型号 | model | ZX21 |
处理量 | Processing capacity | 20-25T/D |
干饼残油率 | Residual oil rate of dry cake | 5-9% |
配用动力 | power | 45+3+1.5 |
外形尺寸 | size | 4000x1100x2300 |
净重 | weight | 4800kg |
