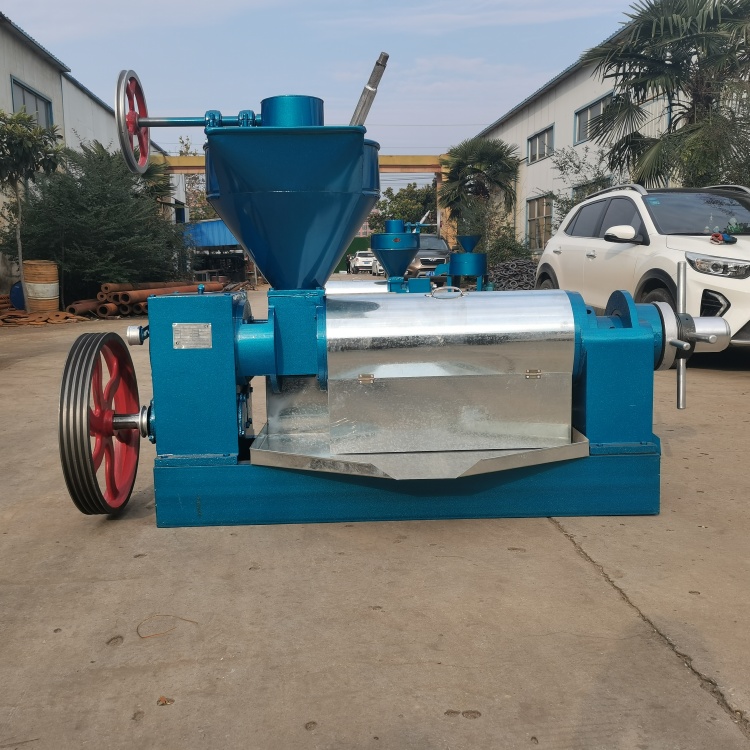

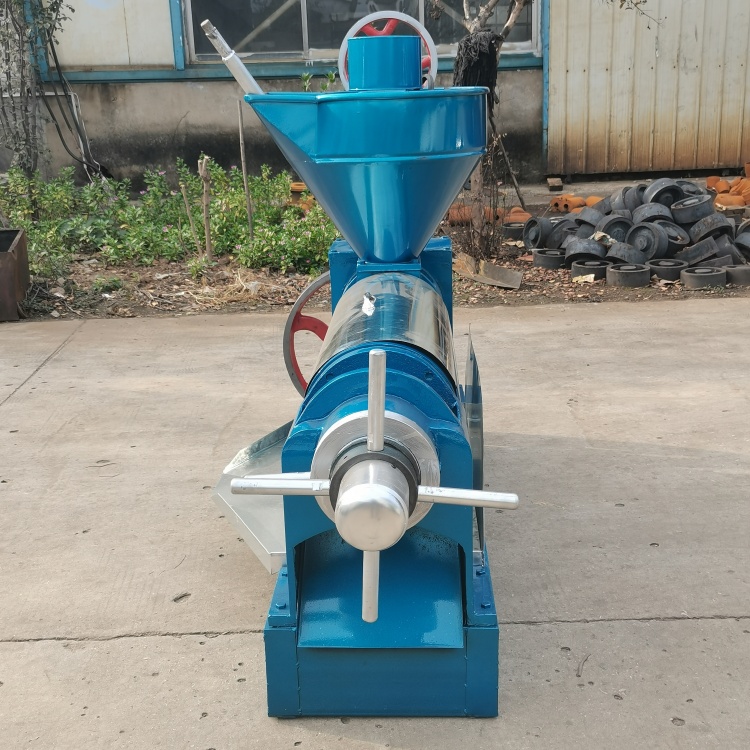

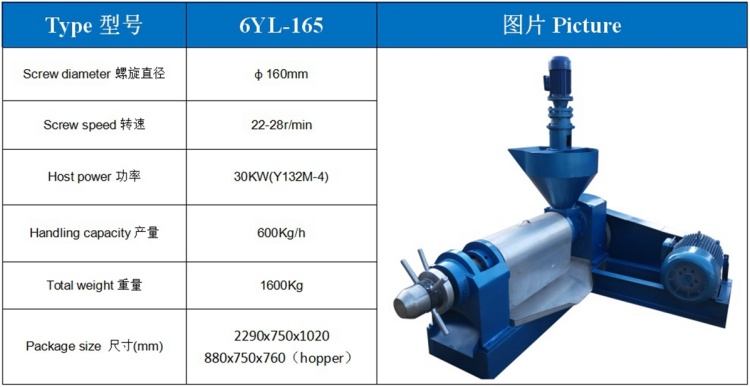

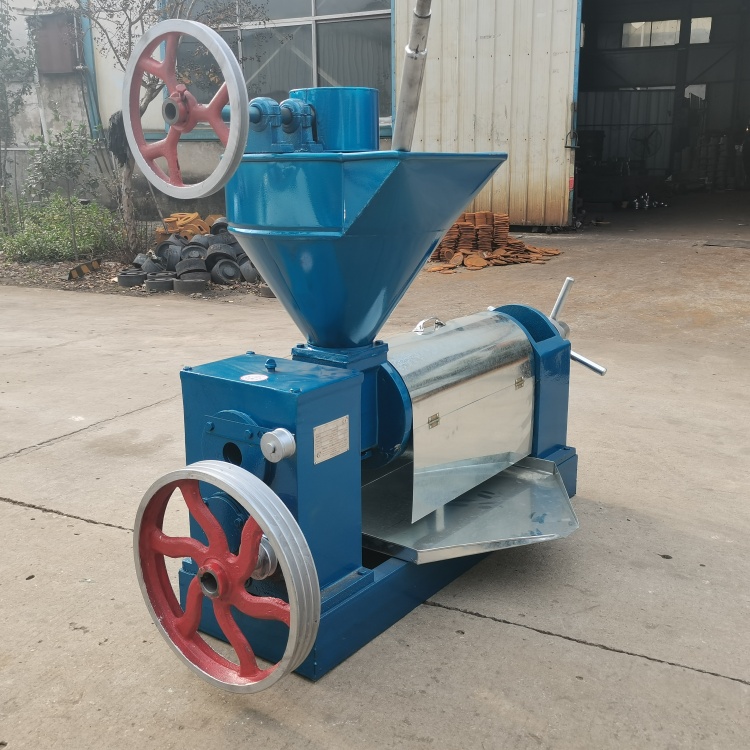

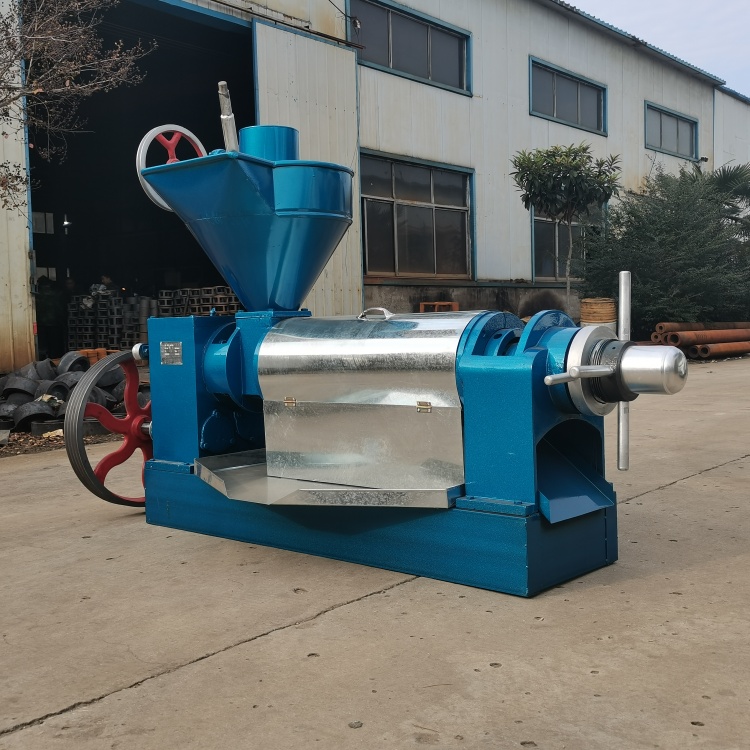

6YL-165 screw oil press

The screw oil press is suitable for more than 50 types of oil crops, including peanuts, soybeans, rapeseed, cottonseed, sesame seeds, okra seeds, sunflower seeds, tea seeds, castor seeds, corn germ, grape seeds, mustard seeds, perilla seeds, horseradish seeds, rubber seeds, tung oil seeds, pomegranate seeds, pumpkin seeds, and grass seeds.

Features of spiral oil press:

1. The screw oil press has high oil yield, strong adaptability, and can operate continuously, with a large single machine processing capacity

2. The clearance between the oil lines of the spiral oil press is small, reducing the amount of slag, increasing the pressure of the press chamber, and improving the oil output rate.

3. Dynamic pressing and squeezing, friction heating, short pressing time, and fast oil output speed;

Key points before starting the screw oil press:

1. Fill the gearbox with oil before starting up

After the machine is installed, add lubricating oil according to regulations, check whether all components are tightened, whether the operating handle and insertion plate are flexible

3. Move the large pulley by hand to check if the machine is loose or stuck. If there are any abnormalities, they should be promptly eliminated

4. Adjust the tightness of the belt, start the motor, and check if the direction of the groove wheel is consistent with the marked direction

5. After checking the preparation work, loosen the locking nut to tighten the screw to the dead center, then retreat 3-4 turns, and move forward half a turn to ensure the gap between the screw and the cake outlet
